Suspended Solid / Sludge Concentration Analyzer
our suspended solids monitor is the solution suitable for wastewater, potable water monitoring, mixed liquor suspended solids monitoring, filtrate monitoring, sludge and many more applications where a traditional turbidimeter or suspended solids analyzer would be used. The suspended solids sensor can be fitted with an auto-cleaning function to keeping them clean.
Transmitter Selection
Electrode Selection
|
Model |

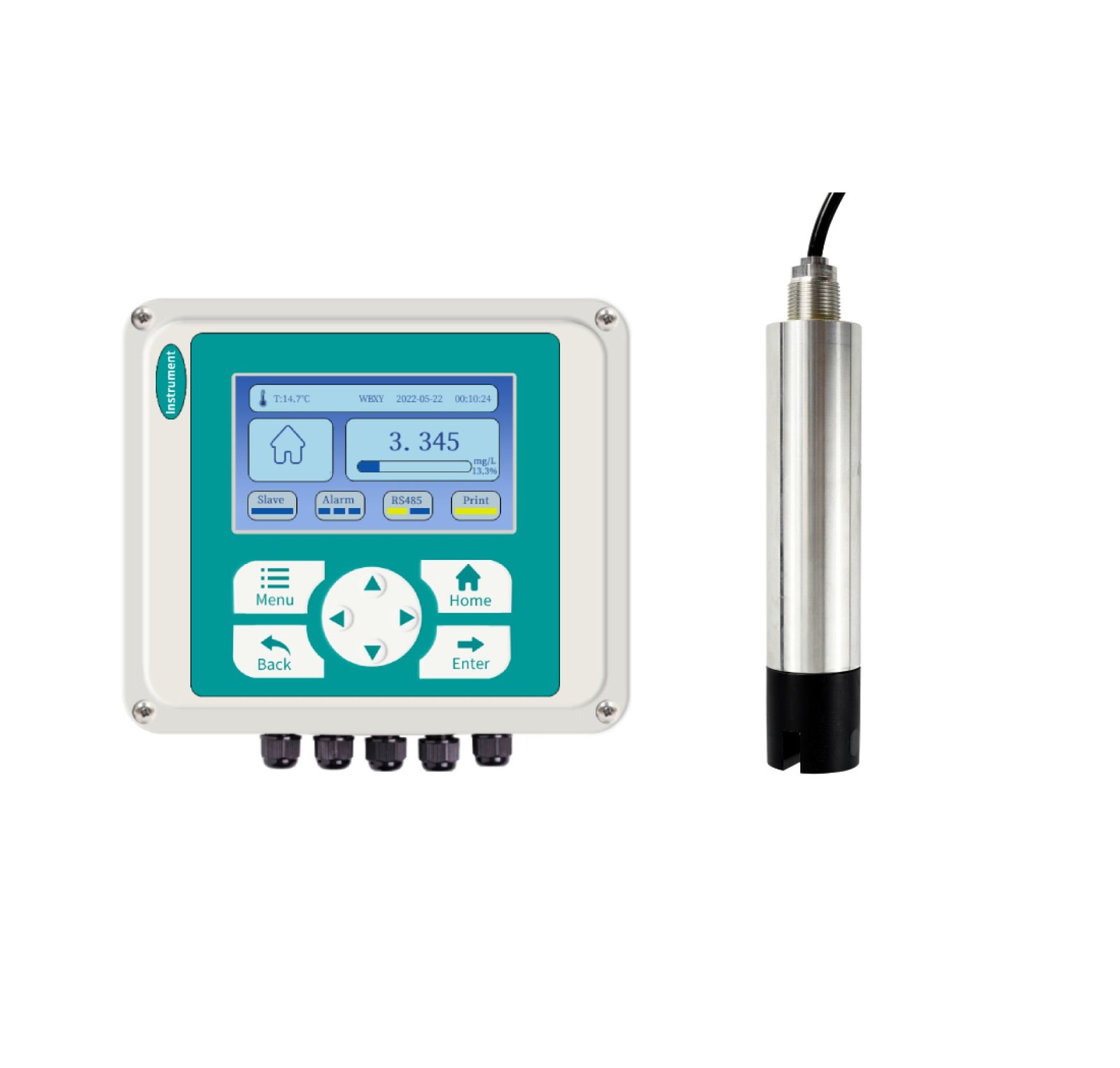

SS100/MLSS100 |

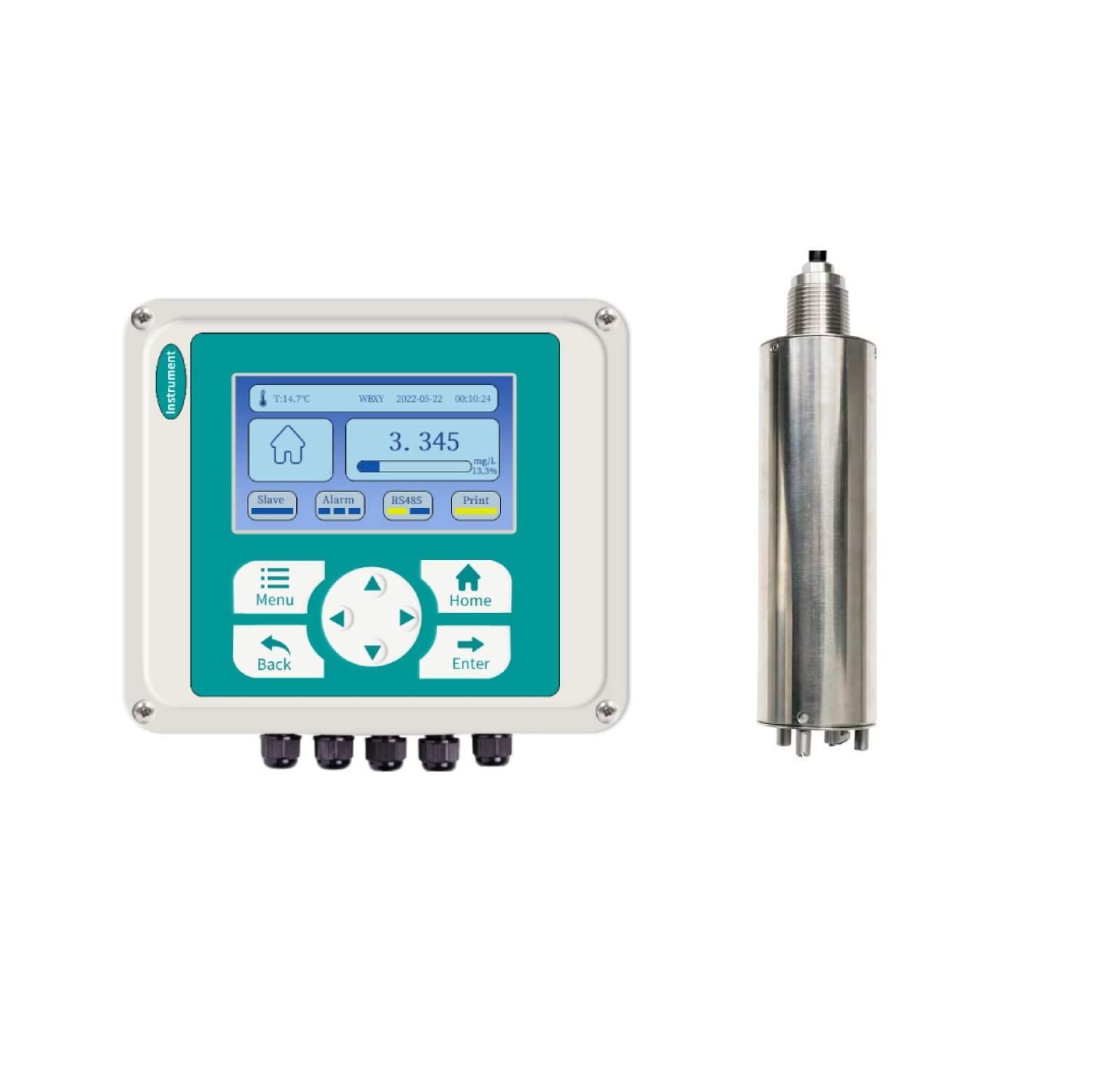

SS200/MLSS200 |

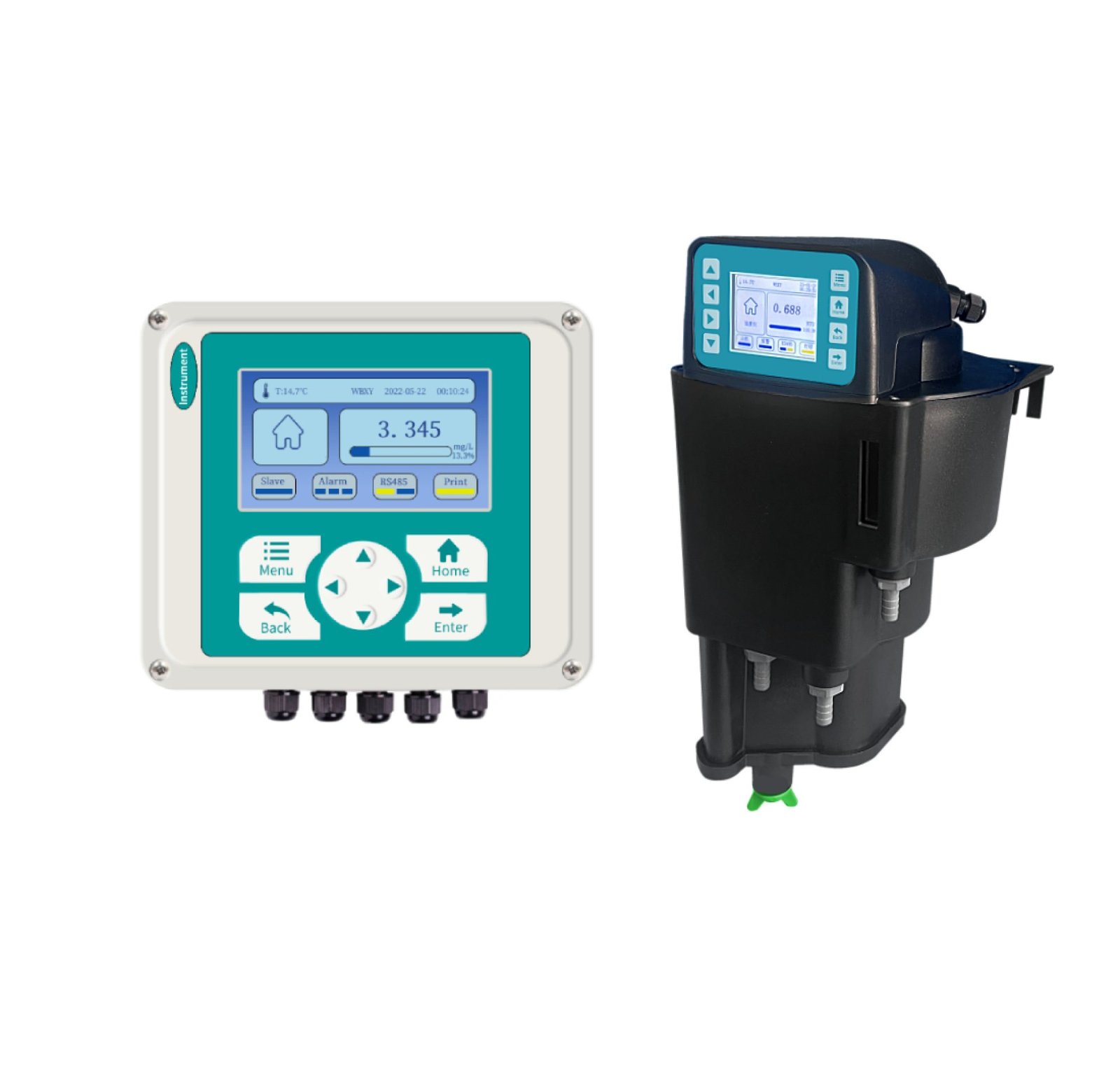

Automatic cleaning model SS300/MLSS300 |
|
Principle |
infrared optical method |
||
|
Cleaning method: |
|
|
automatic scraper |
|
Measurement range |
0-100mg/L, 0-1000mg/L,0-50000mg/L, support OEM |
0-10mg/L, 0-1000mg/L, 0-20g/L, support OEM |
0-100mg/L, 0-1000mg/L, 0-50000mg/L, support OEM |
|
Resolution |
0.01mg, 0.1mg, 1mg |
||
|
Temperature |
-10-50℃ |
||
|
Water depth |
I10mMax, P68 |
||
|
Power supply |
12-24VDC |
||
|
Output |
RS485, 4-20mA |
||
|
Installation method |
NPT3/4, submerged |
Flow cup, quick-connect outer diameter 6mm |
NPT3/4 |
|
Material |
304, POM, quartz glass |
304, POM, quartz glass, acrylic |
304, POM, quartz glass |
|
Response time |
T90, <30s |
||
|
Application |
surface water, sewage pipe network, etc. |
sewage, surface water, tap water, swimming pools, etc. |
sewage, surface water, swimming pools, aquaculture, sewage pipe networks, etc. |
